Thông tin chi tiết sản phẩm:
Thanh toán:
|
| độ dày: | 2 mm, 2,3 mm, 2,5 mm | chiều rộng: | 1050mm |
|---|---|---|---|
| Chiều rộng hiệu quả: | 960mm | Chiều dài: | 11,8m, 5,9m, tùy chỉnh |
| Số lượng sóng: | 7 cái | Vật liệu: | Nhựa PVC, Canxi cacbonat và các vật liệu phụ khác |

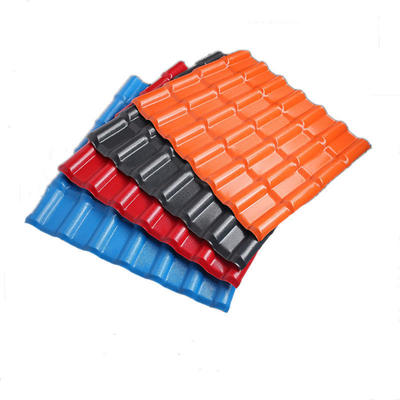

| Màu sắc: | Gạch, Đỏ, Xanh lam, Đen, Xám, Xanh lục, Vàng nâu | Ứng dụng: | Nhà kho, nhà xưởng, trung tâm thương mại, nhà ở, |
| bề mặt: | Lớp phủ màng ASA | Cân nặng: | 4,2-5,2KGS/mét vuông |
| Thời gian sống: | 15-20 năm | Kết cấu: | 4 lớp |
| Hình dạng: | sóng | ||
| Làm nổi bật: | Brick color UPVC roof tile,Heat insulation UPVC roofing sheets,brick color UPVC roofing sheets |
||

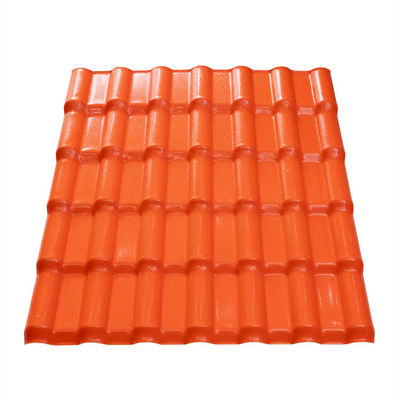

ASA UPVC ROOF SHEETS, Spanish TEJAS DE UPVC
ASA UPVC roofing sheets, ASA coating synthetic resin tiles are made with pvc resin, calcuim carbonate and ASA film, so the price is cheaper than other material, but it has the advantage of light weight, self-waterproof, toughness, thermal insulation, sound insulation, corrosion resistance, wind and earthquake resistance, hail resistance, pollution resistance, green environmental protection, fire resistance, insulation, easy installation, etc., and beautiful shape with strong three-dimensional sense, so it is widely used in various types of permanent building roof.
R1050 thermal insulation ASA UPVC roofing sheets, Spanish UPVC roof sheet:
| Descreption: | Picture of structure | |
| Width | 1050mm |
|
| Effective width | 960mm | |
| Thickness | 2mm, 2.3mm, 2.5mm | |
| Length | Customized (times of 219mm) | |
| Height of wave | 28mm | |
| Number of wave | 7pieces | |
| Vertical overlap | 1 wave (90mm) | |
| Horizontal overlap | 0.2 -0.3m | |
| Componsition |
5% ASA film, 51% PVC resin, 42% calcium carbonate, 2% pvc stabilizer and others. |
|
| Purlin distance | 660mm/880mm | |
| Quality warranty | 15 years. | |
Advantage of ASA UPVC Roofing sheet, Spanish PVC synthetic tiles,
1.Heat insulation: The temperature difference indoor and outdoor could reach 8 to 10ºC. ASA PVC is 4 layers of PVC, this is good for heat insulation.
2.Fire proof: PVC roof sheet is a kind of safe building material, it has passed the building fire protection grade.
3.Color stable: Our roofing sheet has the anti-UV subsidiary material, it will not yellow-changing within 15 years.
4.Water proof: Water cannot pass through the pvc roof sheet.
5.Anti-corrosive: PVC roof sheet is highly resistant against chemical corrosion of acid, alkali, etc.
6.Anti-impact: PVC roof sheet has excellent load bearing performance and could withstand 150kgs. People could stand on the roof after installation.
7.Sound proof: PVC roof sheet has much less noise than other roof materials for example when it rains. lt can make noise 30db less than steel roof.
UPVC roof sheet, Tejas de upvc con cresta baja VS others material's roofing:
Application of UPVC roof sheet: Roofing and Wall for Factory, warehouse and farm etc.
Installation guide of Spanish PVC synthetic resin tiles, ASA film coating UPVC roof sheets:
1, The purlin space:
Thickness of 2.0mm or less, it is recommended that the inclined roof purlin span 600 mm or less, and the circular arch roofpurlin distance of 800 mm or less.
Thickness of 2.5mm, suggest slanting roof purlin span 800 mm or less, round arch Surface purlin span 900 mm or less.
Thickness of 3.0mm, suggest slanting roof purlin span 900 mm or less, round arch Surface purlin span 1000 mm or less.
| Thickness (mm). | “ T ” Design | “ R” Design |
| Thickness ≤ 1.3 mm | ≤ 500 mm | ≤ 700 mm |
| 1.3 mm < Thickness ≤ 2.0 mm | ≤ 700 mm | ≤ 800 mm |
| 2.0 mm < Thickness≤ 3.0 mm | ≤ 800 mm | ≤ 900 mm |
Note: Any thickness of the PVC tile, slanting roof purlin span should not exceed 900 mm, round arch roof purlin Span no more than 1000 mm, otherwise easy to plate deformation, leakage and fracture.
2, Roofing Pitches: ≥5%
3, Temps: The roofing sheets can keep its physical and mechanical performance between -30℃ to 56.6℃ .
4, There should not be permanent load on the sheets.
5, The horizontal overlap for Trapezoidal type is 1 waves, for corrugated type is 2 waves.
6, The vertical overlap for all roofing sheets is at least 200mm, for wall sheet is at least 120mm.
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
PVC Roofing Tile, UPVC Roofing Tile, Synthetic Resin Roof Tile, APVC Roofing Tile, ASA Roofing Tile, Polycarbonate Sheet, Wall Panels
3. why choose us not from other suppliers?
we are a professional manufacturer of plastic sheet.
Our products are full, we are focusing on roofing solution and Indoor docorative material, like upvc roof sheet, ASA roof sheet and Polycarbonate roof sheet, pvc ceiling panel, deocorative roofing panel, epoxy colored sand floor.
we have 20 years experience for our researching, producing and exporting.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish.
Welcome to your inquiry and visiting!!!
