Good Light Transmission Polycarbonate Roofing Sheets For Building Skylight

Good Light Transmission Polycarbonate Roofing Sheets For Building Skylight
Good Light Transmission Polycarbonate Roofing Sheets For Building Skylight Good Light Transmission Polycarbonate Roofing Sheets For Building Skylight Good Light Transmission Polycarbonate Roofing Sheets For Building Skylight Good Light Transmission Polycarbonate Roofing Sheets For Building Skylight

Large Image :  Good Light Transmission Polycarbonate Roofing Sheets For Building Skylight

Product Details:
Place of Origin: Zhejiang, China
Brand Name: OASIS or OEM
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE film
Delivery Time: 15 days after receiving deposit
Payment Terms: L/C, T/T
Supply Ability: 200000 Sqm/Month
Detailed Product Description
Product Name: Good Light Transmission Polycarbonate Roofing Sheets For Building Skylight Size: 6mm * 2.1m * 11.8m
Color: Green Suitable Temperature: -40℃ — +120℃
Feature: Good Light Transmission Application: Building Skylight
High Light:

uv roof sheeting

,

double wall polycarbonate panels

Good Light Transmission Polycarbonate Roofing Sheets For Building Skylight​



Polycarbonate hollow roofing sheet is a basic type with light weight, also can be called double wall polycarbonate panels. It has another feature, UV resistant of one side which greatly help to extend service life.



Polycarbonate Roofing Sheet Main Application

1. Roofing light sheet and sunshade for building


2. Skylight, lighting for corridors, balcony, passages,and subway entries, walkways


3. Conservatories, agricultural greenhouse, zoos, botanical gardens


4. Industrial roofing and glazing


5. Natatorium Swimming pools roofing/cover/sheet



Polycarbonate Roofing Sheet Specification



1. Standard size: Width 2100mm×Length 11800mm; size also could be ordered



2. Thickness: 6mm



3. Min. Bend Radius: 1050mm



4. K value: 3.6W/㎡K



Light Transmission of Polycarbonate Roofing Sheet



Thickness(mm)



Color

4 5 6 8 10
Light transimission



Clear



80% 78% 76% 74% 72%



Lake Blue



56% 54% 51% 49% 48%



Green



55% 52% 51% 48% 46%



Grass green



54% 52% 50% 46% 44%



Brown



34% 32% 30% 26% 23%



Blue



33% 31% 28% 25% 20%



Opal



27% 25% 22% 18% 15%



Advertising white



16% 14% 12% 9% 8%



Polycarbonate Roofing Sheet Properties

1, High impact strength: the shock strength is 300 times than glass, and 30 times than PMMA


2, With 50um UV layer, Anti UV protection and Anti aging


3, Good light transmission and high heat insulation


4, Fireproof, belong to B1 level fireproof material


5, Good weather resistance, suitable temperature is from - 40 ~120ºC; soften temperature is at 148ºC


6, Elastle stress: 2400 MPa; Tensile stress: 63%; Nominal tensile strain:>50%



Polycarbonate Roofing Sheet Packing

As with all glazing materials, care should be exercised when handling and transporting polycarbonate sheet in order to prevent scratches and damage to sheet edges. Each sheet is packaged as follows to minimise the risk of these problems:

* The top face is covered with printed ing

* The bottom face use opal film or neutral film

* The edges of the sheets have colored tape on them

* The sheet should be kept in their packaging until immediately prior to installation



Why Choose Polycarbonate Roofing Sheet of OASIS

HAINING OASIS BUILDING MATERIAL CO.,LTD is an professional manufacturer and exporter of polycarbonae sheets. Established on 2011 and Located at Haining city which is between Shanghai airport and Hangzhou Airport.

We have 3 advanced producing line for polycarbonate sheets. Our factory always focus on quality control, scientific management and R&D, so that we can supply the high quality, competitive price and best service for our clients. That is why our products enjoy good markets in worldwide, such as Latin America, Middle east, Africa and south asisa.

On 2015, we established first branch company at Bogota,Colombia, loacated at Calle 68 #22-43.

On 2016, we set another warehouse in Colombia, the address is Carrera 22#14-60,Bogota.

On 2017, we plan to set more warehouse in another city of Colombia, Such as Cali,Baranquilla.

With “quality first, best credit, clients supreme”, welcome warmly you to inquiry and visit us

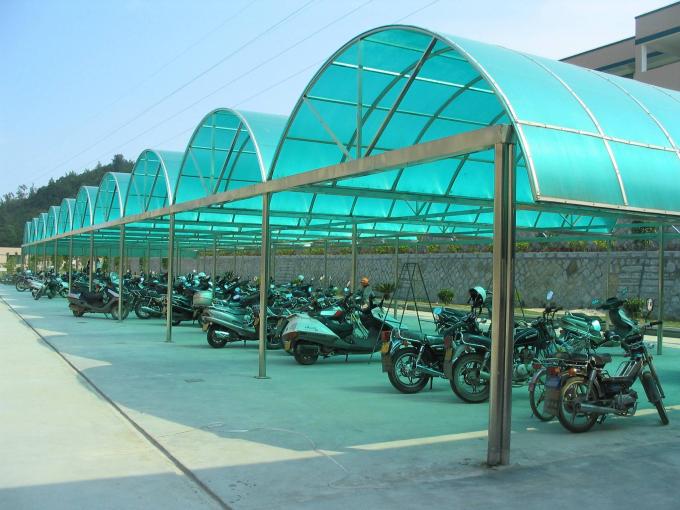

Polycarbonate Roofing Sheet Showing



Good Light Transmission Polycarbonate Roofing Sheets For Building Skylight 0
